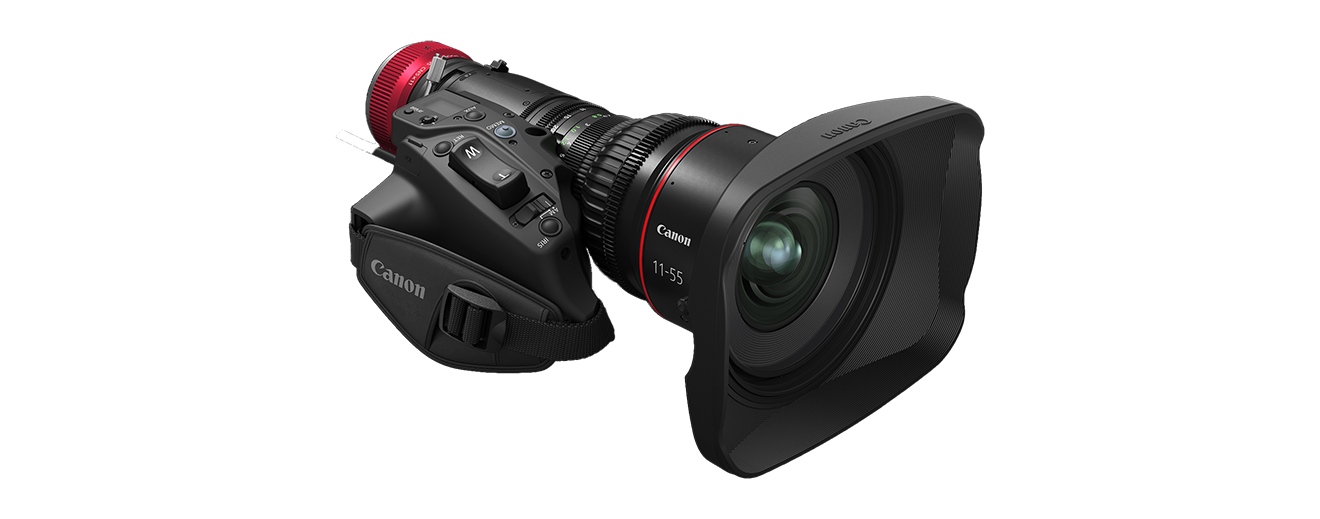

CN5x11 IAS T/R1
This zoom lens has achieved a focal length of just 11mm — the widest angle in the CINE-SERVO Lens* series. It supports wide-angle shots with a sense of depth, particularly when it is impossible to move further away from the subject, or when overhead composition is required. When the built-in 1.5x extender is used, the lens can also be used for a more standard range of focal lengths, covering a wide span of shooting conditions with a single lens. Despite its ultra-wide angle, this lens is the lightest in the series. It has a more gravity-centered balance, making it highly maneuverable when used on equipment such as cranes and wire cams, not to mention when carried on the shoulder.
* This term is used for lenses that include a drive unit as standard equipment, which is compatible with cameras with large-format image sensors.
Specifications
| CN5x11 IAS T/R1 | ||
| Focal Length (mm) | 11–55 16.5-82.5* | |
| Zoom Ratio | 5x | |
| Maximum Diameter Ratio (T-number) | T2.95 (11–41mm) / T3.95 (55mm) T4.4 (16.5-61.5mm) / T5.9 (82.5mm)* | |
| Minimum Shooting Distance | 0.6ｍ/2.0' | |
| Front Diameter (mm) | Φ114 | |
| Number of Blades | 11 | |
| Outer Dimensions (w x h x d) (mm) | Approx. 186.6 × 129.9 × 301.0 | |
| Weight (kg) | Approx. 3.01 | |
| Angle of View | Aspect ratio 1.78:1 Dimensions 24.6 x 13.8mm | 96.4°×64.2° (11mm) / 25.2°×14.3° (55mm) 73.4°×45.4° (16.5mm) / 17.0°×9.6° (82.5mm)* |
| Aspect ratio 1.9:1 Dimensions 26.2 x 13.8mm | 100.0°×64.2° (11mm) / 26.8°×14.3° (55mm) 76.9°×45.4° (16.5mm) / 18.0°×9.6° (82.5mm)* | |
| Field of View at Minimum Shooting Distance (cm) | Aspect ratio 1.78:1 Dimensions 24.6 x 13.8mm | 69.7×39.1 (11mm) / 13.3×7.5 (55mm) 46.5×26.1 (16.5mm) / 8.9×5.0 (82.5mm)* |
| Aspect ratio 1.9:1 Dimensions 26.2 x 13.8mm | 74.2×39.1 (11mm) / 14.2×7.5 (55mm) 49.5×26.1 (16.5mm) / 9.5×5.0 (82.5mm)* | |
*When 1.5x built-in extender is used.
