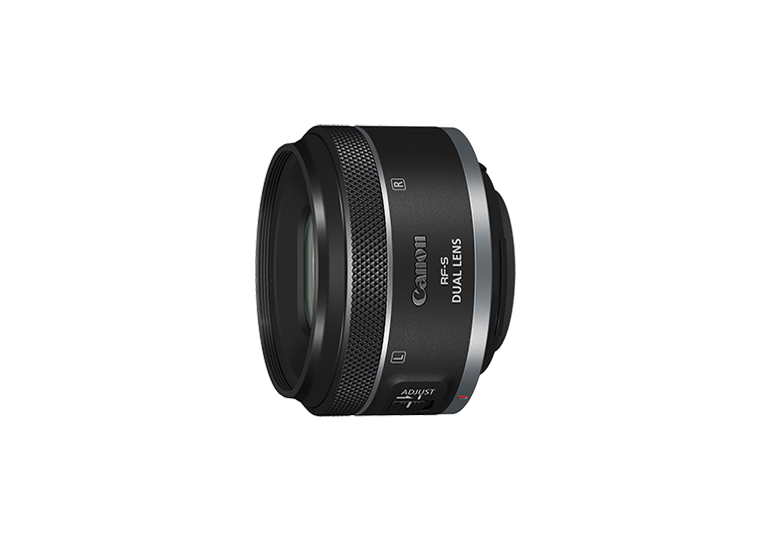

This RF lens*1 is part of the “EOS VR SYSTEM” — an integrated package of products that allow creators to capture 3D images and use them to create new and unique image expressions, and 3D experiences, including compatibility with Apple Vision Pro’s “spatial video”. This lens provides images with a texture and three-dimensional feel even in very conventional shooting situations, such as filming a person cooking or doing crafts, or taking pictures of a pet or other small object. Unlike the pseudo-three-dimensional effect created by bokeh and lighting, 3D lenses can produce a realistic image that appears as if the subject is right in front of the viewer. In addition, quick and precise autofocusing is possible, via the same operation as for ordinary RF lenses.
The optical system uses a straight-type optical design without a prism, in order to accommodate the compact 3D lens units with light weight of only 131g. In addition to the short back focus unique to the EOS R system, two UD lenses on each side (a total of four lenses) are effectively arranged to achieve high-quality 3D images. 4K images shot with this lens and the EOS R7 camera can be recorded with a pixel density that exceeds that of 3D 180° 8K images*2.
*1 As of September 2024, this lens is only compatible with the EOS R7 camera body. The firmware of the EOS R7 must be updated to the latest version when using this lens.
*2 Pixel density = number of recorded pixels / angle of view.
Angle of View (Horizontal/Vertical/Diagonal) | 63° / 63° / 63° |
Lens Construction | 9 elements in 7 groups |
Aperture Blades | 7 |
Min. Aperture | 16 |
Min. Focusing Distance | 0.15m |
Max. Magnification | 0.07x |
Filter Size | 58mm |
Max. Diameter x Length | Approx. 69.2 (width) x 41.5mm |
Weight | Approx. 131g |
Compatible Cameras | EOS R7* *As of October 2024 |
