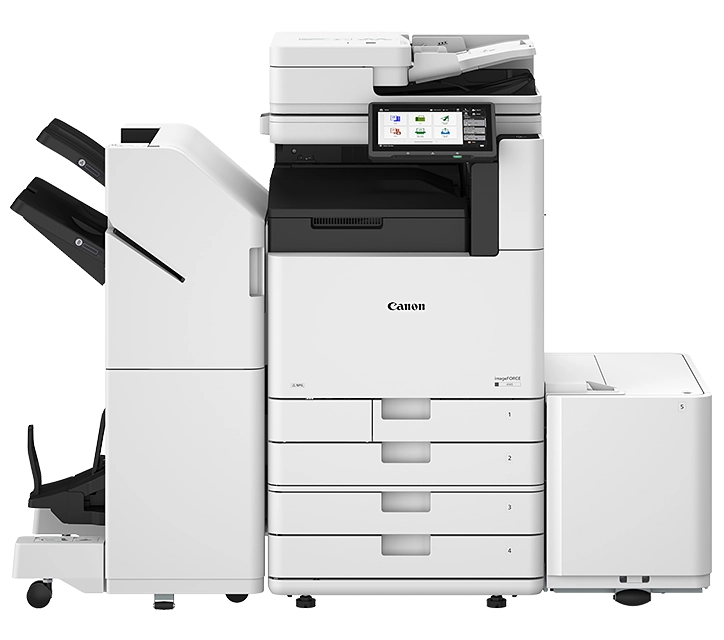

imageFORCE 4100 Series
imageFORCE 4100 Series
imageFORCE 4100 Series
Power through demanding workloads with the imageFORCE 4100 Series, a high-speed A3 monochrome multifunction device built for busy business environments. Combining exceptional productivity, intelligent security, and flexible configuration options, it is designed to support high-volume printing and scanning while keeping your operations efficient, secure, and uninterrupted.
Promotion
Key Features
Features
High-volume productivity
Designed to meet the demands of busy workplaces, the imageFORCE 4100 Series delivers high-speed print performance and fast scanning of up to 270 ipm. With high paper capacity and flexible finishing options, it helps organisations process large volumes of documents efficiently while maintaining consistent output quality.
Intelligent security protection
Protect sensitive information with comprehensive security features designed to safeguard documents, devices, and networks. Security Environment Estimation Technology simplifies setup by recommending security settings that align with your workplace environment, helping you strengthen device protection with confidence.
Sustainability in action
Support your sustainability goals with a design that incorporates recycled materials without compromising performance. Engineered with environmentally conscious manufacturing practices, the imageFORCE 4100 Series helps organisations reduce their environmental impact while maintaining the reliability required for everyday business operations.
Specifications
Main unit
| Machine type | A3 monochrome multifunctional |
| Core functions | Print, copy, scan, send, store and optional fax |
| Processor | Canon dual custom processor (Shared) |

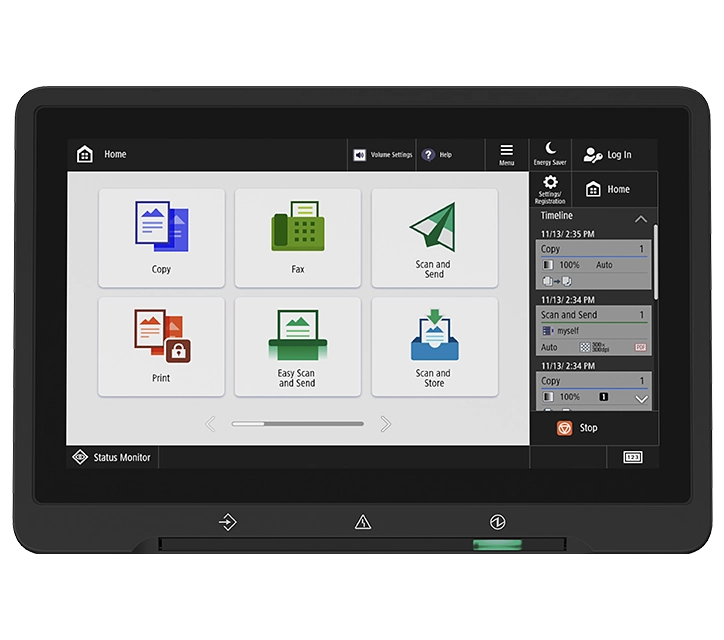

| Control panel | 10.1-inch TFT LCD WSVGA colour touch panel |
| Memory | Standard: RAM 5.0 GB |
| Storage | Standard: (SSD) 256 GB Optional: (SSD) 1 TB |
| Interface connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T Optional: Wireless LAN (IEEE 802.11 a/b/g/n/ac/ax) OTHERS Standard: USB 2.0 (Host) Ă—1, USB 3.0 (Host) Ă—1, USB 2.0 (Device) Ă—1 Optional: Serial interface |
| Paper supply capacity
(A4, 80 gsm) | Standard: 1,200 sheets 100 sheets: Multi-purpose tray Ă— 1 550 sheets: Standard cassette Ă— 2 Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-G1 + Paper Deck Unit-F3) |
| Paper output capacity (A4, 80 gsm) | Standard: 250 sheets Maximum: 3,450 sheets (with Staple Finisher-AH1 or Booklet Finisher-AH1 and Copy Tray-T2) |
| Supported media types | Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Coated*1, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope Upper cassette: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*2 Lower cassette: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*3 |
| Supported media sizes | Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.4 Ă— 139.7 mm to 320.0 Ă— 457.2 mm Free size: 100.0 Ă— 148.0 mm to 304.8 Ă— 457.2 mm Envelopes: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 98.0 Ă— 98.0 mm to 320.0 Ă— 457.2 mm Upper cassette: Standard size: A4, A5, A5R, A6R, B5 Custom size: 105.0 Ă— 148.0 mm to 297.0 Ă— 215.9 mm Envelopes: ISO-C5 Lower cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 105.0 Ă— 148.0 mm to 304.8 Ă— 457.2 mm Envelopes*3: COM10 No.10, Monarch, DL |
| Supported media weights | Multi-purpose tray: 52 to 300 gsm (Only 60 to 300 gsm supported with Media Adjustment Kit-A1*4) Upper/lower cassette: 52 to 256 gsm Duplex: 52 to 220 gsm |
| Warm-up time
(Quick start mode: ON) | Quick startup mode: 4 seconds or less*5 From power ON: 10 seconds or less*6 From sleep mode: 10 seconds or less |
| Dimensions
(W Ă— D Ă— H) | With Platen Cover-Y3: 565 Ă— 745 Ă— 788 mm With Single Pass DADF-E1: 565 Ă— 745 Ă— 897 mm With Single Pass DADF-F1: 565 Ă— 745 Ă— 862 mm |
| Installation space (W × D) | Basic: 978 × 1,141 mm (right door & multi-purpose tray opened + paper cassette opened) Fully Configured: 1,806 × 1,141 mm (with Single Pass DADF-E1/F1 + Staple Finisher-AH1/Booklet Finisher-AH1 + Paper Deck Unit-F3 + paper cassette open） |
| Weight
including toner | With Platen Cover-Y3: Approx. 66 kg With Single Pass DADF-E1: Approx. 80 kg With Single Pass DADF-F1: Approx. 73 kg |
| Print speed (BW) |
imageFORCE 4145: 1-sided: Up to 45 ppm (A4), up to 22 ppm (A3), up to 32 ppm (A4R) 2-sided: Up to 45 ppm (A4), up to 22 ppm (A3), up to 32 ppm (A4R) imageFORCE 4135: 1-sided: Up to 35 ppm (A4), up to 17 ppm (A3), up to 23 ppm (A4R) 2-sided: Up to 35 ppm (A4), up to 17 ppm (A3), up to 23 ppm (A4R) imageFORCE 4125: 1-sided: Up to 25 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 25 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) |
| Print resolution (dpi) | 4800 dpi Ă— 2400 dpi |
| Page description languages |
Standard: UFR II Optional: PCL6/PCL5, Adobe PostScript 3 |
| Direct print | PDF, EPS, TIFF/JPEG, XPS |
| Printing from mobile and cloud | AirPrint, Mopria®, IPP Everywhere, Canon PRINT, uniFLOW Online, Universal Print and Cloud Connector A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information. |
| OS standard printing | Android, Windows® 11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS |
| Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*7 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*8 |
| Operating system | UFR II: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (11.7 or later) PCL: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025 PS: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (11.7 or later) PPD: Windows® 11, macOS (11.7 or later) As of Mar. 2026 |
Copy
| Copy speed (BW) |
imageFORCE 4145: 1-sided: Up to 45 ppm (A4), up to 22 ppm (A3), up to 32 ppm (A4R) 2-sided: Up to 45 ppm (A4), up to 22 ppm (A3), up to 32 ppm (A4R) imageFORCE 4135: 1-sided: Up to 35 ppm (A4), up to 17 ppm (A3), up to 23 ppm (A4R) 2-sided: Up to 35 ppm (A4), up to 17 ppm (A3), up to 23 ppm (A4R) imageFORCE 4125: 1-sided: Up to 25 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 25 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) |
| First-copy-out time (A4) |
imageFORCE 4145: 4.6 seconds imageFORCE 4135: 5.5 seconds imageFORCE 4125: 6.1 seconds |
| Copy resolution (dpi) | 600 Ă— 600 |
| Multiple copies | Up to 9,999 copies |
| Copy density | Automatic or manual (9 levels) |
| Magnification | Variable zoom: 25% to 400% (1% increments) |
Scan
| Type |
Standard: Colour Platen Optional: Platen Cover-Y3, Single Pass DADF-E1*9 or Single Pass DADF-F1*9 [2-sided to 2-sided (Automatic with DADF)] DADF: Duplexing Automatic Document Feeder |
| Document feeder paper capacity (80 gsm) |
Single Pass DADF-E1: Up to 200 sheets Single Pass DADF-F1: Up to 100 sheets |
| Document feeder acceptable paper weight |
Document feeder media weight: Single Pass DADF-E1: 1-sided scanning: 38 to 220 gsm 2-sided scanning: 38 to 220 gsm An acceptable weight of A6R or smaller is 50 to 220 gsm. Single Pass DADF-F1: 1-sided scanning: 38 to 128 gsm 2-sided scanning: 50 to 128 gsm |
| Supported media sizes | Platen: Max. scanning size: 297.0 Ă— 431.8 mm Single Pass DADF-E1: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 69.9 Ă— 139.7 mm to 304.8 Ă— 431.8 mm Single Pass DADF-F1: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 48.0 Ă— 85.0 mm to 304.8 Ă— 431.8 mm |
| Scan speed (ipm, BW/CL, A4) | Single Pass DADF-E1: 1-sided scanning: 135/135 (300 Ă— 300 dpi, send), 80/- (600 Ă— 600 dpi, copy) 2-sided scanning: 270/270 (300 Ă— 300 dpi, send), 160/- (600 Ă— 600 dpi, copy) Single Pass DADF-F1: 1-sided scanning: 80/80 (300 Ă— 300 dpi, send), 60/- (600 Ă— 600 dpi, copy) 2-sided scanning: 120/120 (300 Ă— 300 dpi, send), 60/- (600 Ă— 600 dpi, copy) |
| Scan resolution (dpi) | 600 x 600 |
| Pull scan specifications | Color Network ScanGear 2. For both TWAIN and WIA Supported OS: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025 As of Mar. 2026. |
Send
| Destination |
Standard: E-mail/Internet FAX (SMTP*10), SMB, FTP, SFTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax |
| Address book | LDAP (2,000)/Local (1,600)/Speed dial (200) |
| Communication protocol |
File: FTP (TCP/IP), SFTP (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV E-mail/iFax: SMTP (send), POP3 (receive) |
| File format | TIFF (MMR), JPEG*11, PDF (Compact, searchable, optimise for web, PDF/A-1b, PDF/A-1a, PDF/A-2a, PDF/A-2b, PDF/A-2u, PDF/A-3a, PDF/A-3b, PDF/A-3u, trace & smooth, encrypted, device signature, user signature), XPS (Compact, searchable, device signature, user signature), Office Open XML (PowerPoint, Word) |
Fax
| Maximum number of connection lines | 4 |
| Modem speed |
Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 Ă— 400 (Ultra fine), 200 Ă— 400 (Super fine), 200 Ă— 200 (Fine), 200 Ă— 100 (Normal) |
| Sending / receiving size | Sending: A3, A4, A4R, A5*12, A5R*12, A6R*12, B4, B5*13, B5R*12 Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R |
| FAX memory | Up to 30,000 pages (2,000 jobs) |
| Speed dials | Max. 200 |
| Group dials / destinations | Max. 199 dials |
| Sequential broadcast | Max. 256 addresses |
| Memory backup | Yes |
Store
| Mail box (Number supported) |
100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 30,000 Pages (2,000 jobs) Stored |
| Advanced box |
Communication protocol: SMB or WebDAV Supported client PC: Windows® 11*14 Concurrent connections (Max.): SMB: 64, WebDAV: 3 As of Mar. 2026 |
| Advanced box available disc space |
Standard: 16 GB (With option: Max. 480 GB) |
| Advanced box features | Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore |
Security
| Authentication and access control |
User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online/uniFLOW*15(PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Microsoft Entra ID Authentication (Password Login, Card Login), Google Workspace (Pasword Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control) |
| Document security |
Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*15), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically),
Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Secure Watermark |
| Network security | TLS 1.3 (FIPS140-3), IPSec (FIPS140-3), IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
| Device security | Protecting SSD Data [SSD Data Encryption (FIPS140-3), SSD Lock], Standard SSD Initialize, Initialize (NIST 800-88 PURGE LEVEL), Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control, HCD-PP Common Criteria Certification (Validation pending) |
| Device management and auditing | Administrator Password, Digital Certificate and Key Management, SAN certificates, Audit Log, Cooperating with External Security Audit System (SIEM), Image Data Logging, Security Policy Setting |
Environmental
| Operating environment |
Temperature: 10 to 30 ÂşC Humidity: 20 to 80 % RH (Relative humidity) |
| Power source | 220-240 V 50/60 Hz 5 A |
| Power consumption |
Maximum: Approx. 1,500 W Sleep mode: Approx. 0.5 W*16 |
Consumables
| Toner cartridges | NPG-1010 toner BK |
|
Toner (Estimated yield @ 6% coverage) |
NPG-1010 toner BK: 42,000 pages |
Software and printer management
| Tracking and reporting | uniFLOW Online |
| Remote management tools |
iW Enterprise Management Console Remote Distribution & Management Service Monitoring Service |
| Scanning software | Color Network ScanGear 2 |
| Optimisation tools | Canon Driver Configuration Tool |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
Paper supply options
| Cassette feeding unit-BB1 |
Paper capacity: 550 sheets Ă— 2 (1,100 sheets) (80 gsm) Paper type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 105.0 Ă— 148.0 mm to 304.8 Ă— 457.2 mm Paper weight: 52 to 256 gsm |
| High capacity cassette feeding unit-G1 |
Paper capacity: 2,450 sheets (80 gsm) Paper type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper size: A4 Paper weight: 52 to 256 gsm |
| Paper deck unit-F3 |
Paper capacity: 2,700 sheets (80 gsm) Paper type: Thin, Plain, Recycled, Colour, Pre-punched, Letterhead Paper size: A4, B5 Paper weight: 52 to 105 gsm |
Output options*17
| Inner 2way tray-M1 |
Capacity (with 80 gsm paper) Upper tray: A4, A5, A5R, A6R, B5: 100 sheets SRA3, A3, A4R, B4, B5R: 50 sheets Lower tray (standard tray): A4, A5, A5R, A6R, B5: 250 sheets SRA3, A3, A4R, B4, B5R: 100 sheets Paper weight: 52 to 300 gsm |
| Copy tray-T2 |
Capacity (with 80 gsm paper): A4, A5R, B5: 100 sheets A3, A4R, B4, B5R: 75 sheets Paper weight: 52 to 220 gsm |
| Inner finisher-N1 |
Tray capacity (with 80 gsm paper): Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: Approx. 45 sheets Lower tray: A4, A5, A5R, B5: Approx. 500 sheets A3, A4R, B4, B5R: 250 sheets A6R: 30 sheets SRA3, envelope: 10 sheets Paper weight: 52 to 300 gsm Staple position: Corner, double Staple capacity: (52 to 90 gsm) A4, B5: 50 sheets A4R: 40 sheets A3, B4: 30 sheets Eco staple: A3, A4, B4, B5: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple on demand: Approx. 40 sheets (80 gsm) |
| Inner 2/3 hole puncher-D1 | (Requires Inner Finisher-N1) Two or three holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes A3, A4, A4R, A5, B4, B5, B5R Three holes A3, A4, B4, B5 |
| Inner 2/4 hole puncher-D1 | (Requires Inner Finisher-N1) Two or four holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes A3, A4, A4R, A5, B4, B5, B5R Four holes A3, A4 |
| Staple finisher-AH1 | Tray capacity (with 80 gsm paper): Upper tray: A4, A5, A5R, A6R, B5: Approx. 250 sheets SRA3, A3, A4R, B4, B5R: Approx. 125 sheets Lower tray: A4, A5, A5R, B5: 3,000 sheets SRA3, A3, A4R, B4, B5R: 1,500 sheets A6R: 250 sheets Envelope: Monarch: 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheets Paper weight: Upper tray: 52 to 256 gsm Lower tray: 52 to 300 gsm Staple position: Corner, Double Staple capacity: (52 to 90 gsm) A4, B5: 50 sheets A4R: 40 sheets A3, B4: 30 sheets Eco staple: A3, A4: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple on demand: 50 sheets |
| Booklet finisher-AH1 | (Includes the above Staple Finisher-AH1 basic staple specifications) Saddle stitch paper size: A3, A4R, B4 Saddle stitch staple capacity: 20 sheets Ă— 10 sets (52 to 81.4 gsm) (including 1 cover sheet up to 256 gsm) Non staple folded bunch capacity: Up to 3 sheets (52 to 105 gsm) |
| 2/3 Hole puncher unit-A1 | (Requires either the Staple Finisher-AH1 or Booklet Finisher-AH1) Two or three holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Three holes: A3, A4, B4, B5 |
| 2/4 Hole puncher unit-A1 | (Requires either the Staple Finisher-AH1 or Booklet Finisher-AH1) Two or four holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Four holes: A3, A4 |
- 257-300 gsm requires Media Adjustment Kit-A1.
- Envelope Feeder Attachment B (standard) is required except ISO-C5.
- Envelope Feeder Attachment A (standard) is required.
- Media Adjustment Kit-A1 is required for coated (257-300 gsm).
- Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
- Time from device power-on, until copy ready (not print reservation).
- Optional PCL International Font Set-A1 is required.
- Optional Barcode Printing Kit-D1 is required.
- Multi-Sheet Feed Detection is supported.
- Available OAuth 2.0 authentication method on Microsoft Exchange Online and Google Workspace.
- Single-Page only.
- Sent as A4.
- Sent as B4 short.
- Windows 11 only supports SMB.
- Optional.
- 0.5 W is not available in all circumstances due to certain settings.
- Paper capacity may vary with different paper type/size.
