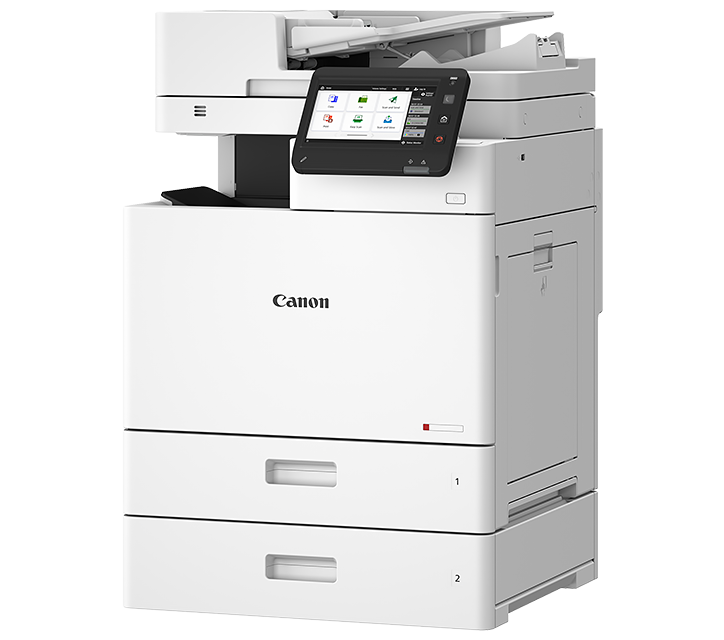

Drive business productivity with the imageFORCE C1743 Series, a compact A4 colour multifunction printer designed for modern workplaces. Combining high-speed output, reliable performance, and comprehensive security, it delivers professional-quality colour prints while fitting seamlessly into space-conscious office environments.
Promotion
Key Features
Features
High-speed productivity in a compact design
Built for demanding workflows, the imageFORCE C1743 Series delivers print speeds of up to 52 ppm without compromising on output quality. Its compact footprint allows businesses to maximise workspace efficiency while maintaining the performance required to support busy teams and growing workloads.
Secure & connected workflows
Enable seamless collaboration while keeping business information protected. Direct integration with uniFLOW Online supports cloud-based document sharing and workflow management, simplifying scanning, printing, and document distribution. At the same time, comprehensive security features help safeguard devices, documents, and networks, ensuring data remains protected throughout its lifecycle.
Reliable & sustainable performance
Designed for dependable day-to-day operation, the imageFORCE C1743 Series delivers consistent media handling and reliable performance to keep workflows moving smoothly. Sustainability is built into its design through the incorporation of recycled materials and recycled iron, helping organisations reduce their environmental impact while maintaining the productivity and reliability they depend on.
Specifications
imageFORCE C1743 Series
Download Brochure
Main unit
| Machine type | A4 colour laser multifunctional |
| Core functions | Print, copy, scan, send and optional fax |

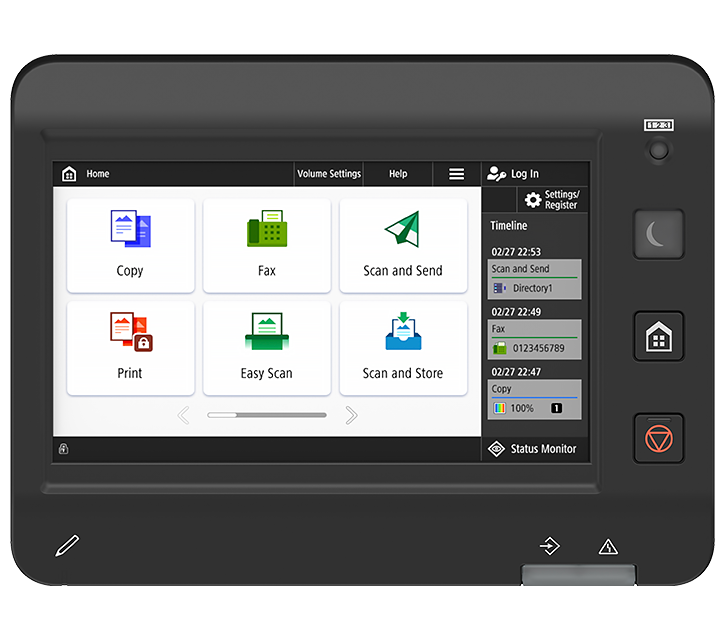

| Control panel
| 7" TFT LCD WSVGA colour touch panel |
| Memory | RAM 2.5 GB |
| Storage
| Use area: 30 GB (eMMC, bootable) |
| Interface connection
| NETWORK Standard: 1000Base-T/100Base-TX/10Base-T Optional: Wireless LAN (IEEE 802.11a/b/g/n/ac/ax) OTHERS Standard: USB 2.0 (host) ×2, USB 2.0 (device) ×1 |
| Network security
| TLS 1.3, IPSec, IEEE 802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception |
| Document security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) |
| Paper supply capacity (A4, 80 gsm)
| Standard: 550 sheets Maximum: 2,300 sheets (with CASSETTE UNIT-AL1×2, CST.FEEDING UNIT-BA1) |
| Paper output capacity (A4, 80 gsm)
| Standard: 400 sheets Maximum: 400 sheets |
| Toner yield (estimated @ 5% coverage)
| TN 1009 YMC: 12,000 pages BK: 18,700 pages |
| Supported media sizes
| Paper cassette: A4, A5R, A5, A6, B5, B6S, FLS, OFICIO, M-OFICIO, B-OFICIO, G-LTRS, I-LGL, GLGL, AFLS, F4A Custom size (101.6 × 148.0 mm-216.0 × 355.6 mm) Multi-purpose tray: A4, A5R, A5, A6, B5, B6, FLS, OFICIO, M-OFICIO, B-OFICIO, G-LTRS, I-LGL, GLGL, Index Card (3×5 inch), AFLS, F4A, COM10 No.10, Monarch, DL, ISO-C5 Custom size envelope (Min. 76.0 × 127.0 mm to Max. 216.0 × 355.6 mm) Custom size (Min. 76.0 × 127.0 mm to Max. 216.0 × 355.6 mm) |
| Supported media weights
| Paper cassettes: 60 to 200 gsm Multi-purpose tray: 60 to 216 gsm Duplex: 60 to 200 gsm |
| Warm-up time (quick start mode: on) | Quick startup mode: 4 seconds or less*2 From sleep mode: 10 seconds or less |
| Dimensions
(W × D × H) | 500 × 603 × 645 mm |
| Installation space (W × D)
| 770 × 847 mm*3 |
| Weight*4 | Approx. 44 kg |
| Print speed (BW and CL) |
imageFORCE C1752 Series 1-sided: Up to 52 ppm (A4), up to 72 ppm (A5R), up to 84 ppm (A5), up to 69 ppm (A6) 2-sided: Up to 52 ppm (A4), up to 69 ppm (A5R) imageFORCE C1743 Series 1-sided: Up to 43 ppm (A4), up to 60 ppm (A5R), up to 69 ppm (A5), up to 59 ppm (A6) 2-sided: Up to 43 ppm (A4), up to 52 ppm (A5R) |
| Print resolution (dpi) | 600 dpi × 600 dpi |
| Page description languages | UFR II, PCL6/PCL5, Adobe PostScript 3 |
| Direct print | Supported file types: PDF, EPS, TIFF/JPEG, XPS |
| Printing from mobile and cloud | AirPrint, Mopria®, IPP Everywhere, Canon PRINT, uniFLOW Online and Universal Print A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information |
| Operating system | UFRII: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (11.7 or later) PCL: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 PS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (11.7 or later) PPD: Windows® 10/11, macOS (11.7 or later) At the timing of Oct, 2025. |
Copy
| Copy speed (BW and CL) |
imageFORCE C1752 Series 1-sided: Up to 52 ppm (A4), up to 72 ppm (A5R), up to 84 ppm (A5), up to 69 ppm (A6) 2-sided: Up to 52 ppm (A4), up to 69 ppm (A5R) imageFORCE C1743 Series 1-sided: Up to 43 ppm (A4), up to 60 ppm (A5R), up to 69 ppm (A5), up to 59 ppm (A6) 2-sided: Up to 43 ppm (A4), up to 52 ppm (A5R) |
| First-copy-out time (A4, BW/CL) |
imageFORCE C1752 Series: BW 5.5 sec CL 5.9 sec imageFORCE C1743 Series: BW 6.2 sec CL 6.8 sec |
| Copy resolution (dpi) |
600 × 600 dpi (platen/default) 600 × 600 dpi (ADF) 300 × 600 dpi (ADF/default) |
| Multiple copies | Up to 9,999 copies
|
| Copy density
| Automatic or manual (9 levels) |
| Magnification | Variable zoom: 25% to 400% (1% increments) |
Scan
| Type | Standard: Single-pass Duplexing Automatic Document Feeder |
| Document feeder paper capacity (80 gsm) | Up to 100 sheets |
| Document feeder acceptable paper weight |
Platen: Sheet, book
Document feeder media weight: 1-sided scanning: 42 to 128 gsm (BW), 64 to 128 gsm (CL) 2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL) |
| Supported media sizes | Platen: Max. Scanning size: 216.0 × 355.6 mm Document feeder media size: A4R, A5R, A6R, B5R Custom size: 48.0 × 128.0 mm to 216.0 × 355.6 mm |
| Scan speed (ipm: BW/CL, A4) | Send (300 × 300 dpi): Automatic colour select "off": 1-sided scanning: 95 2-sided scanning: 190 Automatic colour select "on": 1-sided scanning: 50 2-sided scanning: 100 Copy: Scan speed priority (300 × 600 dpi: default) 1-sided scanning: 50 2-sided scanning: 100 Image quality priority (600 × 600 dpi) 1-sided scanning: 30 2-sided scanning: 50 |
| Scan resolution (dpi) | 600 × 600 |
| Pull scan specifications | Color Network ScanGear 2. For both TWAIN and WIA Supported OS: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025 As of Oct. 2025 |
Send
| Destination |
Standard: E-mail/Internet FAX (SMTP), SMB, FTP, SFTP, FTPS, WebDAV Optional: Super G3 FAX |
| Address book | LDAP (2,000)/Local (1,600)/Speed dial (200) |
| Communication protocol |
File: FTP (TCP/IP), SFTP (TCP/IP), FTPS (TCP/IP), SMB (TCP/IP), WebDAV
E-mail/iFax: SMTP (send), POP3 (receive) |
| File format | Standard: TIFF (MMR), JPEG*5, PDF (Compact, OCR (Text Searchable), PDF/A-1b, PDF/A-1a, PDF/A-2a, PDF/A-2b, PDF/A-2u, PDF/A-3a, PDF/A-3b, PDF/A-3u, Trace&Smooth, Encrypted), XPS (Compact, OCR (Text Searchable)), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word) Option: PDF (Trace & Smooth), PDF/XPS (User Signature) |
Fax
| Maximum number of connection lines | 1 |
| Modem speed |
Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 × 400 (ultra fine), 200 × 400 (super fine), 200 × 200 (fine), 200 × 100 (normal) |
| Sending / receiving size | Sending: A4, A5R*6, A6*6, B5*6 Receiving: A4, A5, A5R, B5 |
| FAX memory | Up to 30,000 pages (2,000 jobs)
|
| Speed dials | Max. 200 |
| Group dials / destinations | Max. 199 dials |
| Sequential broadcast | Max. 256 addresses |
Environmental
| Operating environment |
Temperature: 10 to 30ºC Humidity: 20 to 80% RH (relative humidity) |
| Power source | 220-240 V, 50/60 Hz (10 A) |
| Power consumption |
Maximum: Approx. 1,760 W Sleep mode: Approx. 1.5 W*7 |
Paper supply options
| Cassette module-AL1 |
Paper Capacity: 550 sheets (80 gsm) Paper type: Thin, Plain, Recycled, Coated paper, Colour, Heavy, Bond, Label, Pre-Punched, Letterhead Paper size: A4, A5, A5R, A6, B5 Custom size: 101.6 × 148.0 mm to 216.0 × 355.6 mm Paper weight: 60 to 200 gsm |
| Cassette feeding unit-BA1 |
Paper capacity: 550 sheets (80 gsm) Paper type: Thin, Plain, Recycled, Coated paper, Colour, Heavy, Bond, Label, Pre-Punched, Letterhead Paper size: A4, A5, A5R, A6, B5 Custom size: 101.6 × 148.0 mm to 216.0 to 355.6 mm Paper weight: 60 to 200 gsm |
- Optional.
- Up to available print message.
- Cassette and MP Tray opened.
- Including regular toner.
- Single-page only.
- Sent as A4.
- 1.5 W is not available in all circumstances due to certain settings.
