imageFORCE C3026
imageFORCE C3026
imageFORCE C3026
Stay ahead with the imageFORCE C3026, a high-speed A3 colour multifunction device designed for busy corporate environments. Combining vibrant print quality, intelligent workflow capabilities, and comprehensive security, it helps businesses streamline daily operations while maintaining productivity, efficiency, and peace of mind.
Promotion
Key Features
Features
Exceptional colour performance
Make every document stand out with outstanding print quality and vibrant colour output. From business reports and marketing materials to customer-facing presentations, the imageFORCE C3026 delivers sharp text, rich colours, and professional results that leave a lasting impression.
Comprehensive security protection
Safeguard your business with advanced security features designed to protect documents, devices, and networks. With platform firmware resilience, automatic system recovery, dual network support, and WPA3 compatibility, the imageFORCE C3026 helps ensure reliable protection against evolving security threats.
Connected workflows, greater efficiency
Enhance collaboration across teams and work environments with seamless connectivity. Integration with cloud platforms and business applications enables users to access, share, and manage documents effortlessly, helping organisations stay connected and productive wherever work happens.
Specifications
imageFORCE C3026
Download Brochure
Main unit
| Machine type | A3 colour multifunctional |
| Core functions | Print, copy, scan, send and optional fax |
| Processor | Canon dual custom processor (shared) |
| Control panel

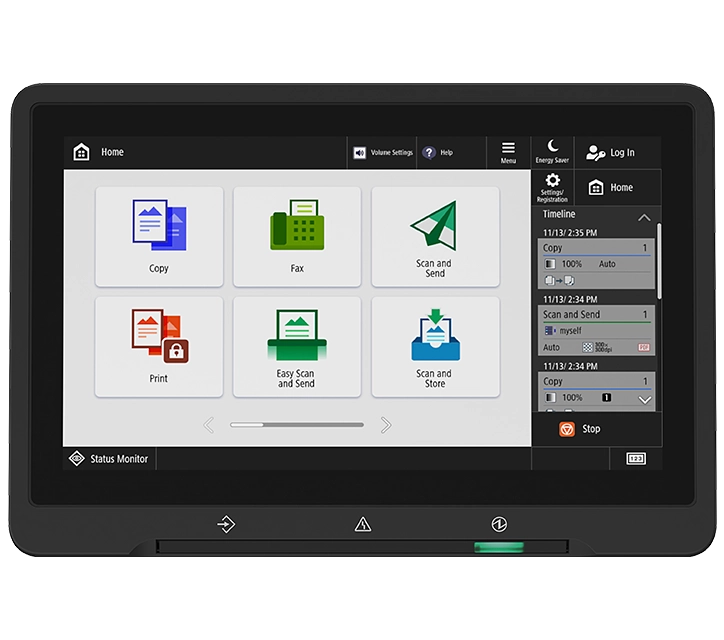

| 7-inch TFT LCD WVGA colour touch panel |
| Memory
| Standard: RAM 3.0 GB |
| Storage
| Standard: 64 GB eMMC (available space 30 GB) Optional: 256 GB SSD |
| Interface connection
| NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (host) Ă—2, USB 2.0 (device) Ă—1 |
| Paper supply capacity
(A4, 80 gsm) | Standard: 1,200 sheets 100 sheets: Multi-purpose tray Ă—1 550 sheets: Standard cassette Ă—2 Maximum: 2,300 sheets (with Cassette Feeding Unit-BB1) |
| Paper output capacity (A4, 80 gsm)
| Standard: 250 sheets Maximum: 645 sheets (with Inner Finisher-N1 and Copy Tray-T2) |
| Supported media types
| Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Coated*1, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope Upper cassette: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*2 Lower cassette: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*3 |
| Supported media sizes
| Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.4 Ă— 139.7 mm to 320.0 Ă— 457.2 mm Free size: 100.0 Ă— 148.0 mm to 304.8 Ă— 457.2 mm Envelopes: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 98.0 Ă— 98.0 mm to 320.0 Ă— 457.2 mm Upper cassette: Standard size: A4, A5, A5R, A6R, B5 Custom size: 105.0 Ă— 148.0 mm to 297.0 Ă— 215.9 mm Envelopes: ISO-C5 Lower cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 105.0 Ă— 148.0 mm to 304.8 Ă— 457.2 mm Envelopes*3: COM10 No.10, Monarch, DL |
| Supported media weights
| Multi-purpose tray: 52 to 300 gsm (only 60 to 300 gsm supported with Media Adjustment Kit-A1*4) Upper/lower cassette: 52 to 256 gsm Duplex: 52 to 220 gsm |
| Warm-up time
(quick start mode: on) | 4 seconds or less*5 From power on: 10 seconds or less*6 From sleep mode: 10 seconds or less |
| Dimensions
(W Ă— D Ă— H) | With Platen Cover-Y3: 565 Ă— 712 Ă— 788 mm With Single Pass DADF-F1: 565 Ă— 712 Ă— 862 mm |
| Installation space (W Ă— D)
| Basic: 978 Ă— 1,141 mm (right door & multi-purpose tray opened + paper cassette opened) Fully configured: 1,285 Ă— 1,141 mm (with Single Pass DADF-F1 + Inner Finisher tray max extended + Copy Tray-T2 max extended + paper cassette opened) |
| Weight*7 | With Platen Cover-Y3: Approx. 73 kg With Single Pass DADF-F1: Approx. 79 kg |
| Print speed (BW and CL) |
1-sided: Up to 26 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 26 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) |
| Print resolution (dpi) | 4800 dpi Ă— 2400 dpi |
| Page description languages | Standard: UFRⅡ, PCL6/PCL5 Optional: Adobe® PostScript®3TM |
| Direct print | PDF, EPS, TIFF/JPEG, XPS
|
| Printing from mobile and cloud | AirPrint, Mopria®, IPP Everywhere, Canon PRINT, uniFLOW Online and Universal Print A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information |
| OS standard printing | Android, Windows® 11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS
|
| Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9 |
| Operating system | UFR II: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (11.7 or later) PCL: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025 PS: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (11.7 or later) PPD: Windows® 11, macOS (11.7 or later) As of Mar. 2026 |
Copy
| Copy speed (BW and CL) | 1-sided: Up to 26 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) 2-sided: Up to 26 ppm (A4), up to 15 ppm (A3), up to 20 ppm (A4R) |
| First-copy-out time (A4, BW/CL) | Approx. 7.0/8.7 seconds or less |
| Copy resolution (dpi) | 600 Ă— 600 |
| Multiple copies
| Up to 999 copies
|
| Copy density
| Automatic or manual (9 levels)
|
| Magnification
| Variable zoom: 25% to 400% (1% increments)
|
Scan
| Type | Standard: Colour Platen Optional: Platen Cover-Y3, Single Pass DADF-F1*10 [2-sided to 2-sided] DADF: Duplexing Automatic Document Feeder |
| Document feeder paper capacity (80 gsm) | Up to 100 sheets |
| Document feeder acceptable paper weight | Document feeder media weight: 1-sided scanning: 38 to 128 gsm 2-sided scanning: 50 to 128 gsm |
| Supported media sizes
| Platen: Max. Scanning size: 297.0 Ă— 431.8 mm Document feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6, B6R Custom size: 48.0 Ă— 85.0 mm to 304.8 Ă— 431.8 mm |
| Scan speed (ipm, BW/CL, A4)
| Single Pass DADF-F1: 1-sided scanning: 80/80 (300 Ă— 300 dpi, send), 60/60 (600 Ă— 600 dpi, copy) 2-sided scanning: 120/120 (300 Ă— 300 dpi, send), 60/60 (600 Ă— 600 dpi, copy) |
| Scan resolution (dpi)
| 600 Ă— 600
|
| Pull scan specifications
| Color Network ScanGear 2. For both TWAIN and WIA Supported OS: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025 As of Mar. 2026 |
Send
| Destination | Standard: E-mail/Internet FAX (SMTP*11), SMB, FTP, SFTP, WebDAV Optional: Super G3 FAX |
| Address book | LDAP (2,000)/Local (1,600)/Speed dial (200) |
| Communication protocol | File: FTP (TCP/IP), SFTP (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV E-mail/iFax: SMTP (send), POP3 (receive) |
| File format
| Standard: TIFF (MMR), JPEG*12, PDF (compact, searchable, PDF/A-1b, PDF/A-1a, PDF/A-2a, PDF/A-2b, PDF/A-2u, PDF/A-3a, PDF/A-3b, PDF/A-3u, encrypted, device signature), XPS (compact, searchable, device signature), Office Open XML (PowerPoint, Word) Optional: PDF (trace & smooth), PDF/XPS (user signature) |
Fax
| Maximum number of connection lines | 1 |
| Modem speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression method | MH, MR, MMR, JBIG |
| Resolution (dpi)
| 400 Ă— 400 (ultra fine), 200 Ă— 400 (super fine), 200 Ă— 200 (fine), 200 Ă— 100 (normal) |
| Sending / receiving size
| Sending: A3, A4, A4R, A5*13, A5R*13, B4, B5*14, B5R*13 Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R |
| FAX memory
| Up to 30,000 pages (2,000 jobs) |
| Speed dials
| Max. 200 |
| Group dials / destinations
| Max. 199 dials |
| Sequential broadcast
| Max. 256 addresses |
| Memory backup
| Yes |
Security
| Authentication and access control | User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW*15 (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Microsoft Entra ID Authentication (Password Login, Card Login), Google Workspace (Pasword Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control) |
| Document security | Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*16), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*17), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) |
| Network security | TLS 1.3 (FIPS140-3), IPSec (FIPS140-3), IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support(Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling(Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception |
| Device security
| Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control
|
| Device management and auditing
| Administrator Password, Digital Certificate and Key Management, SAN certificates, Audit Log, Cooperating with External Security Audit System (SIEM), Security Policy Setting
|
Environmental
| Operating environment | Temperature: 10 to 30ÂşC Humidity: 20 to 80% RH (relative humidity) |
| Power source | 220-240 V, 50/60 Hz 4 A |
| Power consumption | Maximum: Approx. 1,500 W Sleep mode: Approx. 0.8 W*18 |
Consumables
| Toner cartridges | NPG-1007 toner BK/C/M/Y NPG-1007L toner C/M/Y |
| Toner (estimated yield @ 5% coverage) |
NPG-1007 toner BK: 36,000 pages NPG-1007 toner C/M/Y: 19,000 pages NPG-1007L toner C/M/Y: 2,500 pages |
Software and printer management
| Tracking and reporting | uniFLOW Online |
| Remote management tools | iW Enterprise Management Console Remote Distribution & Management Service Monitoring Service |
| Scanning software | Color Network ScanGear 2 |
| Optimisation tools
| Canon Driver Configuration Tool
|
| Platform
| MEAP (Multifunctional Embedded Application Platform)
|
Paper supply options
| Cassette feeding unit-BB1 | Paper capacity: 550 sheets Ă—2 (1,100 sheets) (80 gsm) Paper type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 105.0 Ă— 148.0 mm to 304.8 Ă— 457.2 mm Paper weight: 52 to 256 gsm |
Output options*19
| Inner 2way tray-M1 | Capacity (with 80 gsm paper) Upper tray: A4, A5, A5R, A6R, B5: 100 sheets SRA3, A3, A4R, B4, B5R: 50 sheets Lower tray (standard tray): A4, A5, A5R, A6R, B5: 250 sheets SRA3, A3, A4R, B4, B5R: 100 sheets Paper weight: 52 to 300 gsm |
| Copy tray-T2 | Capacity (with 80 gsm paper): A4, A5R, B5: 100 sheets A3, A4R, B4, B5R: 75 sheets Paper weight: 52 to 220 gsm |
| Inner finisher-N1 | Tray capacity (with 80 gsm paper): Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: Approx. 45 sheets Lower tray: A4, A5, A5R, B5: Approx. 500 sheets A3, A4R, B4, B5R: 250 sheets A6R: 30 sheets SRA3, Envelope: 10 sheets Paper weight: 52 to 300 gsm Staple position: Corner, Double Staple capacity: (52 to 90 gsm) A4, B5: 50 sheets A4R: 40 sheets A3, B4: 30 sheets Eco staple: A3, A4, B4, B5: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple on demand: Approx. 40 sheets (80 gsm) |
| Inner 2/3 hole puncher-D1
| (Requires Inner Finisher-N1) Two or three holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes A3, A4, A4R, A5, B4, B5, B5R Three holes A3, A4, B4, B5 |
| Inner 2/4 hole puncher-D1
| (Requires Inner Finisher-N1) Two or four holes Acceptable punch paper weight: 52 to 300 gsm Acceptable punch paper size: Two holes A3, A4, A4R, A5, B4, B5, B5R Four holes A3, A4 |
- 257-300 gsm requires Media Adjustment Kit-A1.
- Envelope Feeder Attachment B (standard) is required except ISO-C5.
- Envelope Feeder Attachment A (standard) is required.
- Media Adjustment Kit-A1 is required for Coated (257-300 gsm).
- Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
- Time from device power-on, until copy ready (not print reservation).
- Including regular toner.
- Optional PCL International Font Set-A1 is required.
- Optional Barcode Printing Kit-D1 is required.
- Multi-Sheet Feed Detection is supported.
- Available OAuth 2.0 authentication method on Microsoft Exchange Online and Google Workspace.
- Single-Page only.
- Sent as A4.
- Sent as B4 short.
- Including uniFLOW / uniFLOW Online.
- Requires optional uniFLOW Online / uniFLOW.
- Requires optional Universal Send Digital User Signature Kit-C1.
- 0.8 W is not available in all circumstances due to certain settings.
- Paper capacity may vary with different paper type/size.
