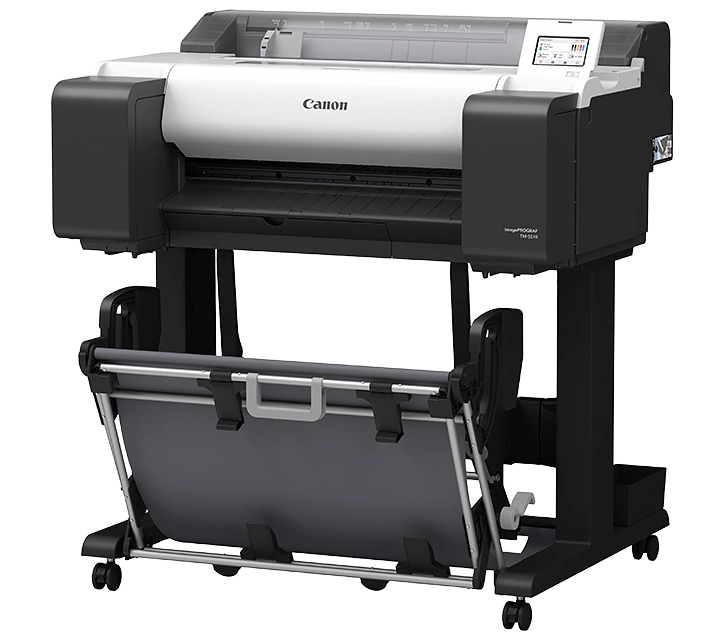

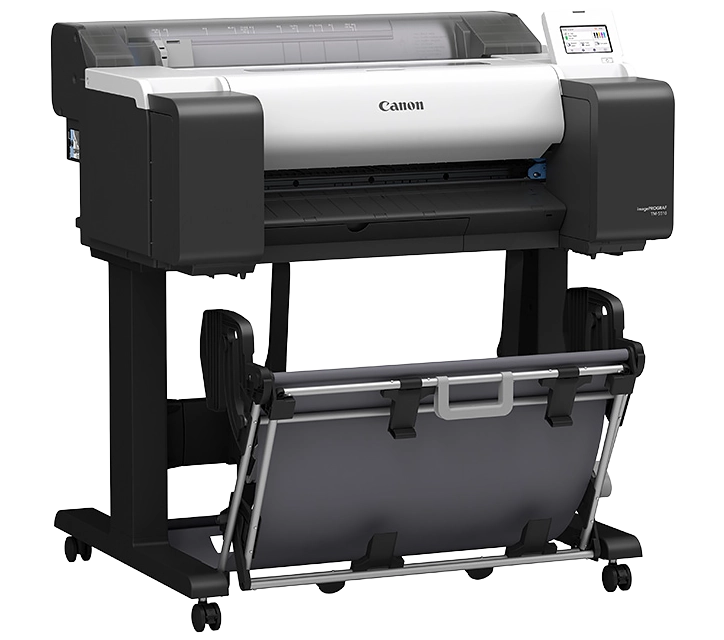

imagePROGRAF TM-5510
imagePROGRAF TM-5510
imagePROGRAF TM-5510
The new 24" imagePROGRAF TM-5510 large format printer raises the standard for print excellence through greater business printing performance for creating photo images, posters and CAD drawings. Express limitless creativity through vivid, quality prints thanks to improved ink capabilities.
Promotion
Key Features
Features

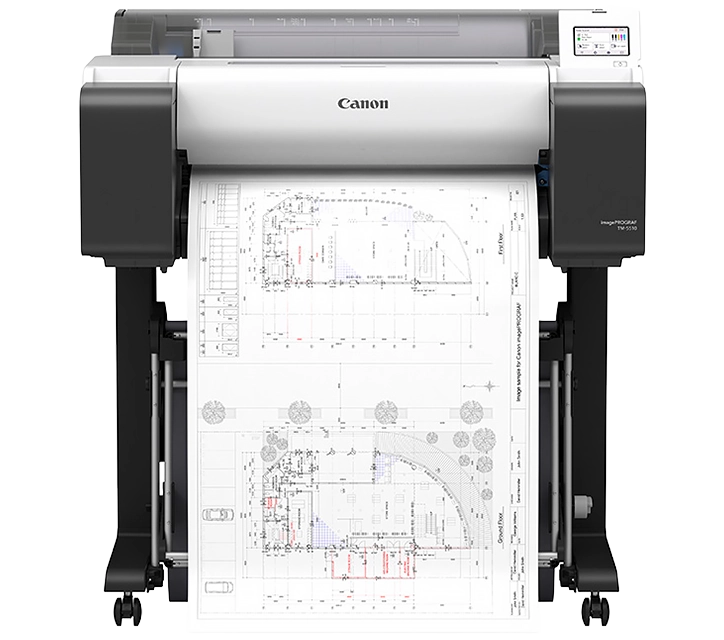

Sharper lines
High quality fine CAD lines and texts are reproduced and bleeding at edges of thin lines are minimised, delivering reliable high-speed printing with exceptional results even in default mode.

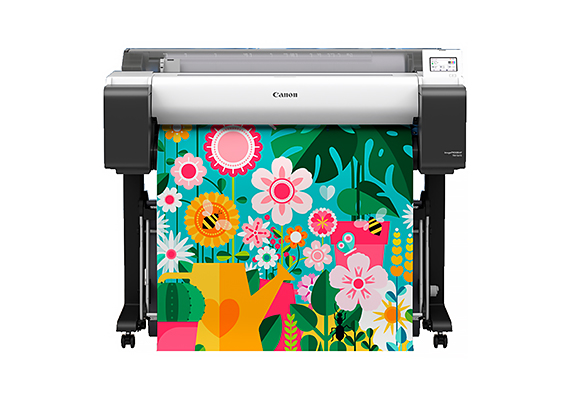

Vivid posters
Image processing enhances vivid posters on plain paper with darker colours, enhanced colour reproduction, improved text contrast and excellent visibility. Using all pigment ink, overall print quality has been enhanced.
Full front operation
Print operations will result in greater efficiency. The flat top is designed for convenient daily operation including roll papers loading and consumables replacement. Automatic paper type detection enables users to retrieve paper media information easily.
Technologies
LUCIA TD Ink
The new matte black ink enhances technical drawings with sharper lines and greater clarity. 5-colour LUCIA TD pigment ink is formulated to produce sharp text, rich colours and accurate lines with excellent water resistance, even on plain paper.
FINE Print Head
Equipped with micron-sized nozzles, the fully integrated print head provides superb uniformity of ink density and colours, while multi-pass printing ensures highest print quality is maintained on every print.
L-COA PRO II Image Processing Engine
The L-COA PRO II high-speed imaging processing engine facilitates swift startups from sleep mode as well as continuous printing by providing improved data processing power, improving overall printing efficiency.
Workflow Solutions
PosterArtist
Design vibrant posters for your needs with minimal effort using the PosterArtist application. Check it out here.
Accounting Manager
Track ink and media usage for cost calculation and reporting.
Media Configuration Tool
Easily manage, update and arrange media information in printer's operation panel and printer driver.
Have a question on Canon imagePROGRAF Large Format Printer?
Want to know how it can help in your business?
Related Consumables
Ink/Ribbon/Print Head
|
Product Name
|
Page Yield
|
Product Type
|
|
PFI-8120 BK (Black, 130ml)
|
Ink Tank
|
|
|
PFI-8120 C (Cyan, 130ml)
|
Ink Tank
|
|
|
PFI-8120 Y (Yellow, 130ml)
|
Ink Tank
|
|
|
PFI-8121 M (Magenta, 130ml)
|
Ink Tank
|
|
|
PFI-8123 MBK (Matte Black, 130ml)
|
Ink Tank
|
|
|
PFI-8320 BK (Black, 300ml)
|
Ink Tank
|
|
|
PFI-8320 C (Cyan, 300ml)
|
Ink Tank
|
|
|
PFI-8320 Y (Yellow, 300ml)
|
Ink Tank
|
|
|
PFI-8321 M (Magenta, 300ml)
|
Ink Tank
|
|
|
PFI-8323 MBK (Matte Black, 300ml)
|
Ink Tank
|
|
|
MC-31
|
Maintenance Cartridge
|
|
|
PF-06
|
Print Head
|
Related Reads
Specifications
Printer
Printer type |
5-colour 24" (610 mm) |
Number of nozzles |
15,360 nozzles
|
Maximum print resolution |
2,400 × 1,200 dpi |
Nozzle pitch |
1,200 dpi (2 lines) |
Line accuracy*1 |
± 0.1% or less |
Ink capacity |
Sales ink: 130 ml / 300 ml (MBK/BK/C/M/Y) |
Ink type | Pigment ink |
Printer language |
SG Raster (Swift Graphic Raster)
|
Printing solutions |
Direct Print Plus, Free Layout plus, PosterArtist Windows/Web/Lite, Wi-Fi Connection Assistant, Canon PRINT (mobile), Canon Print System (mobile) |
Management solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
Standard interfaces (built-in) |
USB B port:
|
Standard memory |
2 GB |
Hard disk |
- |
Display |
LCD (4.3 inch / 10.9 cm TFT colour) |
Print speed*4
CAD drawing (A1 portrait, fast Q5 mode) |
20 sec |
Poster (A1 portrait, standard mode) |
1 min 21 sec |
Media handling
Media feed and output |
|
Roll paper |
One roll, top load, front output |
Cut sheet |
Top load, front output |
Media width (roll/cut sheet) |
Roll width: 203.2 - 610 mm;
|
Media thickness (roll/cut sheet) |
0.07 - 0.8 mm |
Media core size |
2 inch / 3 inch core |
Min. Printable length |
|
Roll paper |
203.2 mm |
Cut sheet |
279.4 mm |
Max. Printable length |
|
Roll paper |
18 m*5 |
Cut sheet |
1,600 mm |
Maximum outer roll diameter |
150 mm or less |
Borderless printing |
Supported for roll paper |
Margins (recommended area) |
|
Roll paper (top, bottom, sides) |
20 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
20 mm, 20 mm, 3 mm |
Margins (printable area) |
|
Roll paper (top, bottom, sides) |
3 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
3 mm, 20 mm, 3 mm |
Dimensions & weight
Dimensions (W × D × H) |
|
Main unit |
978 × 720 × 421 mm (operation panel is not tilt up) |
Main unit + printer stand + basket (SD-26) |
978 × 885 × 1,041 mm (basket opened) |
Weight *6 |
|
Main unit |
42 kg |
Main unit + printer stand + basket (SD-26) |
55 kg |
Packaged dimensions (W × D × H) |
|
Printer (main unit + pallet) |
1,152 × 913 × 650 mm |
Stand + basket (SD-26) |
1,058 × 826 × 270 mm |
| Desktop basket (BU-07)
| 798 × 301 × 111 mm
|
Printer (main unit with stand and pallet) (SD-26) |
1,152 × 913 × 914 mm |
Packaged weight *6 |
|
Printer (main unit + Pallet) |
74 kg |
Stand + basket (SD-26) |
22 kg |
| Desktop basket (BU-07)
| 2 kg |
Printer (main unit with stand and pallet) (SD-26) |
97 kg |
Power & operating requirements
Power supply |
AC 100 - 240 V, 50 - 60 Hz |
Power consumption |
|
Printing*7 |
Approx. 62 W |
Sleep mode*7 |
Approx. 1.6 W |
Power off |
Approx. 0.06 W |
Operating environment |
|
Temperature |
15 - 30°C |
Humidity |
10 - 80% RH (no dew condensation) |
Acoustic sound |
|
Acoustic power*8 |
Operation: Approx. 6.2 Bels |
Acoustic pressure*8 |
Operation: Approx. 41 dB |
Accessories
Printer stand (optional) |
SD-26 |
| Desktop basket (optional) | BU-07 |
2"/3" roll holder |
RH2-28 |
Card reader interface for uniFLOW |
RA-02 |
Consumables
Ink tank |
Magenta: PFI-8121 (130 ml) / PFI-8321 (300 ml)
|
Print head |
PF-06 |
| Cutter blade | CT-08 |
Maintenance cartridge |
MC-31 |
- User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
- USB Thumb drive printing is not supported.
- IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) supported.
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Varies according to the OS and application.
- Including roll holder set, excluding print head and ink tanks.
- Using wired LAN.
- Acoustic Power and Pressure are measured using ISO 7779 standard.
