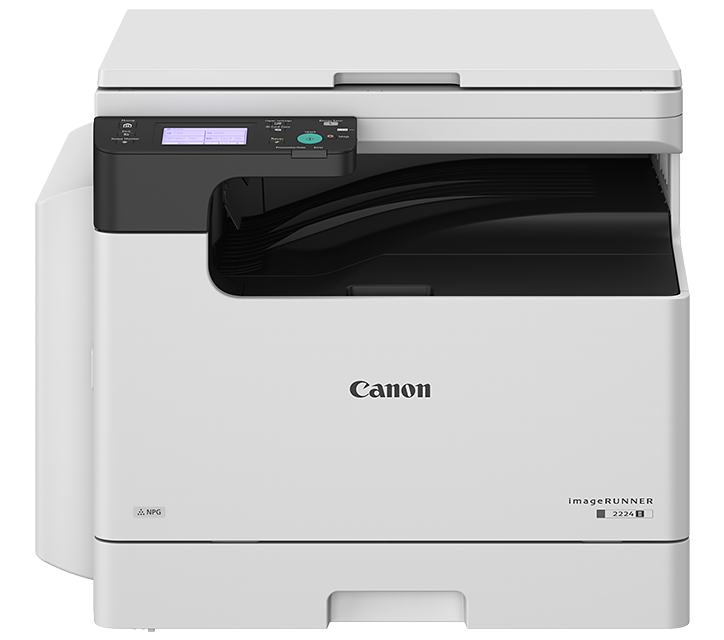

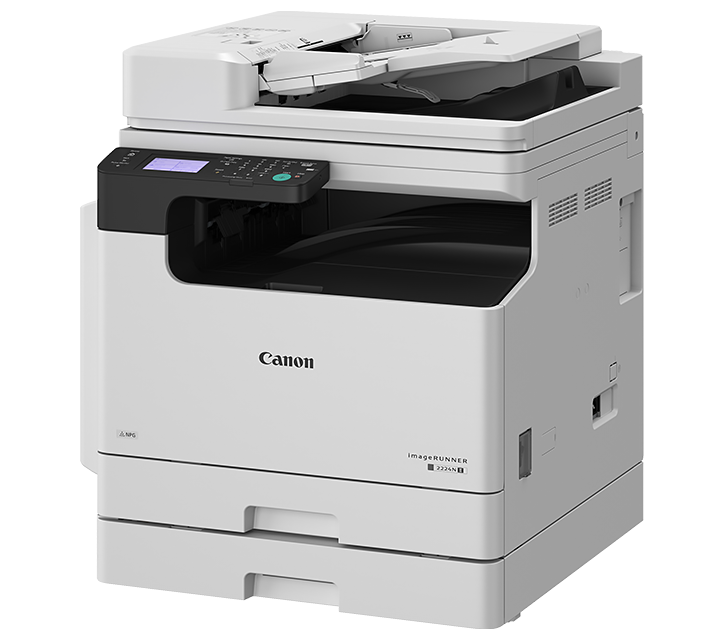

Achieve effortless efficiency with the imageRUNNER 2224N II / 2224 II, an A3 monochrome multifunction device designed for everyday business productivity. Combining practical functionality, intuitive operation, and dependable security, it streamlines document workflows while delivering reliable performance for a wide range of office environments.
Promotion
Key Features
Features
Enhanced usability for everyday work
Designed to simplify daily tasks, the imageRUNNER 2224 II / 2224N II features an intuitive touchscreen interface that enables quick and easy navigation. Customisable home screen settings help users access frequently used functions with ease, while convenient features such as ID Card Copy simplify document processing and improve workplace efficiency.
Streamlined document workflows
Keep business processes moving with features designed to enhance everyday productivity. From quick access to frequently used functions to efficient document handling capabilities, the imageRUNNER 2224 II / 2224N II helps reduce manual effort and enables users to complete routine tasks faster and more efficiently.
Dependable security & protection
Keep sensitive information protected with security features designed to safeguard device integrity and business data. Verify System at Start-up helps ensure firmware and applications remain uncompromised, while built-in security measures provide reliable protection against unauthorised access, giving businesses greater confidence in their daily operations.
Specifications
imageRUNNER 2224N II / 2224 II
Download Brochure
Main unit
| Machine type | A3 monochrome multifunctional |
| Core functions | imageRUNNER 2224N II: Print, copy, scan and send imageRUNNER 2224 II: Print, copy and scan |
| Control panel | 3.5-inch monochrome touch panel |
| Memory | RAM 1.5 GB |
| Storage | eMMC: 2 GB |
| Interface connection | Network*1 Standard: 100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Others Standard: USB 2.0 (Device) Ă—1 |
| Paper supply capacity (A4, 80 gsm) | Standard: 350 sheets Maximum: 600 sheets*1 (with Cassette Feeding Module-AM1) |
| Paper output capacity (A4, 80 gsm) | Maximum: 250 sheets |
| Finishing capabilities
| Collate, group |
| Supported media types | Multi-purpose tray: Thin, Plain, Recycled, Thick, Colour, Bond, Label, Pre-punched, Envelope Paper cassette: Plain, Recycled, Colour, Pre-punched |
| Supported media sizes | Multi-purpose tray: A3, A4, A4R, A5, A5R, B4, B5, B5R Envelope (COM10, Monarch, DL, ISO-C5) Custom size: 95.0 Ă— 148.0 mm to 297.0 Ă— 431.8 mm Paper cassette: Standard size: A3, A4, A4R, A5R, B4, B5, B5R |
| Supported media weights | Multi-purpose tray: 60 to 157 gsm Paper cassettes: 64 to 90 gsm Duplex: 60 to 90 gsm*1 |
| Warm-up time | From power on: 13 seconds or less*2 From sleep mode: 4.3 seconds or less |
| Dimensions (W Ă— D Ă— H) | imageRUNNER 2224N II (with SP DADF): 627 Ă— 617 Ă— 606 mm imageRUNNER 2224 II / 2224N II (with platen cover): 627 Ă— 589 Ă— 518 mm |
| Installation space (W Ă— D) | 1,065 Ă— 1,285 mm |
| Weight | imageRUNNER 2224N II: Approx. 38.4 kg without toner and including SP DADF imageRUNNER 2224 II: Approx. 30 kg without toner and including platen cover |
| Print speed (BW) |
1-sided:
Up to 24 ppm (A4), up to 12 ppm (A3), up to 11 ppm (A4R)
2-sided: Up to 16.7 ppm (A4), up to 7.5 ppm (A3), up to 7.8 ppm (A4R)*1 |
| Print resolution (dpi) | 600 Ă— 600 |
| Page description languages |
Standard: UFRII Optional: PCL6*1 |
| Printing from mobile and cloud | AirPrint, Mopria®, IPP Everywhere, Canon PRINT, and Universal Print A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information. |
| OS standard printing | Android, Windows® 10/11, ChromeOS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS As of Feb. 2025 |
| Fonts | PCL fonts: 45 Roman, 10 Bitmap fonts
|
| Operating system | UFRII:
Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.15 or later)
PCL: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 As of Jan. 2025 |
Copy
| Copy speed (BW) |
1-sided: Up to 24 ppm (A4), up to 12 ppm (A3), up to 11 ppm (A4R)
2-sided: Up to 16.7 ppm (A4), up to 7.5 ppm (A3), up to 7.8 ppm (A4R) |
| First-copy-out time (BW) | Platen: Approx. 7.4 seconds or less |
| Copy resolution (dpi) | 600 Ă— 600 |
| Multiple copies | Up to 999 copies |
| Copy density | Automatic or manual (9 levels) |
| Magnification | Variable zoom: 25% to 400% (1% increments) |
Scan
| Document feeder paper capacity (80 gsm) | Up to 100 sheets |
| Document feeder acceptable paper weight |
Document feeder sheet media weight: 1-sided scanning: 38 to 220 gsm (BW/CL) 2-sided scanning: 50 to 220 gsm (BW/CL) Only 1-sheet feeding is supported in 38 - 42 gsm. |
| Supported media sizes |
Platen: Max. scanning size: 297.0 Ă— 431.8 mm
Document feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R Custom size: 48.0 × 85.0 mm to 304.8 × 431.8 mm　 |
| Scan speed (ipm, BW/CL, A4) | 1-sided scanning: 35/35 (300 dpi, send), 30/30 (600 dpi, copy)
2-sided scanning: 70/70 (300 dpi, send), 60/40 (600 dpi, copy) |
| Scan resolution (dpi) | Scan for copy: Up to 600 Ă— 600
Scan for send: (Push) up to 300 Ă— 600, (Pull) up to 600 Ă— 600 Scan for fax: Up to 200 Ă— 400 |
| Pull scan specifications | ScanGear MF for both TWAIN and WIA
Windows® 10/11, macOS (10.15 or later) As of Jan. 2025 |
Send
| Destination |
imageRUNNER 2224N II: E-mail (SMTP*3), SMB |
| Address book | imageRUNNER 2224N II: LDAP (50)/Local (300)/Speed dial (296) |
| Communication protocol | File: SMB3.1.1 (TCP/IP) |
| File format | Standard: TIFF, JPEG*4, PDF (compact) |
Security
| Authentication and access control | Department ID Authentication (Department ID and PIN Login, Function Level Login) |
| Document security |
Print Security (SecurePrint, Encrypted SecurePrint), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History)
|
| Network security | TLS 1.3*1, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP Address Filtering), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN |
| Device security | Standard eMMC Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery) |
| Device management and auditing | Administrator Password, Digital Certificate and Key Management*1, Cooperating with External Security Audit System (Security Information and Event Management)*1, Security Policy Setting*1 |
Environmental
| Operating environment |
Temperature: 10 to 30ÂşC
Humidity: 20 to 80% RH (relative humidity) |
| Power source | 220-240 V, 50/60 Hz (2.8 A) |
| Power consumption |
Maximum: Approx. 1,500 W
Standby: Approx. 25.7 W Sleep mode: Approx. 0.9 W |
Consumables
| Toner (estimated yield @ 6% coverage) | NPG-59 Black: 10,200 impressions (A4) |
Paper supply options
| Cassette Module-AM1 |
Paper capacity: 250 sheets Ă—1 (80 gsm) Paper type: Plain, Recycled, Colour, Pre-punched Paper size: A3, A4, A4R, A5, B4, B5, B5R Paper weight: 64 to 90 gsm Power source: From the Main Unit |
| Duplex Unit-F1 |
Enables automatic double-sided printing*1 |
- imageRUNNER 2224N II only.
- Time from device power-on until copy ready (not print reservation).
- Available OAuth 2.0 authentication method on Microsoft 365 and Google Workspace.
- Single page only.
