    Name of components and information displayed on the screen (PowerShot ELPH 510 HS / IXUS 1100 HS)

    16-Sep-2011
    8201271100

    Solution

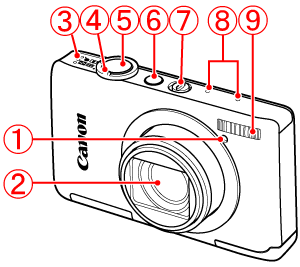

    Front Panel


    LampPower Button
    LensMode Switch
    SpeakerMicrophones
    Zoom Lever
    Shooting: (Telephoto) / (Wide Angle)
    Playback: (Magnify) / (Index)    		Flash
    Shutter Button

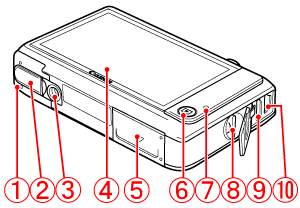

    Back Panel


    Battery Cover (Playback) Button
    DC Coupler Terminal CoverIndicator
    Tripod SocketStrap Mount
    Screen (LCD Monitor)HDMI Terminal
    Memory Card Slot CoverA/V OUT (Audio/Video Output) / DIGITAL Terminal

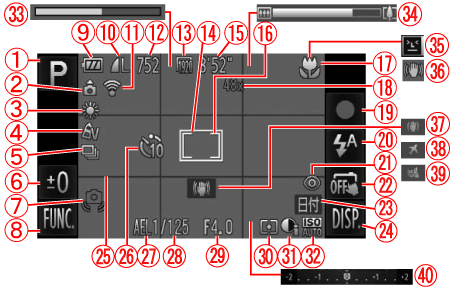

    Shooting (Information Display)


    Shooting Mode, Scene IconRed-Eye Correction
    Camera Orientation*Touch Shutter
    White BalanceDate Stamp
    My ColorsDISP. (Display)
    Drive ModeGrid Lines
    Exposure Compensation AmountSelf-Timer
    Camera Shake WarningAE Lock, FE Lock
    FUNC. (Function)Shutter Speed
    Battery Charge IndicatorAperture Value
    Compression (Image Quality) / Recording PixelsMetering Method
    Eye-Fi Connection Statusi-Contrast
    Recordable ShotsISO Speed
    Image Quality (Movies)Super Slow Motion Movie Shooting Time
    AF FrameZoom Bar
    Remaining TimeBlink Detection
    Spot AE Point FrameIS Mode Icon
    Focusing Range, AF LockIS Mode
    Digital Zoom Magnification / Digital Tele-converterTime Zone
    Shooting MoviesWind Filter
    Flash ModeExposure Compensation Bar

    * : Standard, : Held vertically
    When shooting, the camera detects if it is held vertically or horizontally, and adjusts settings accordingly for the best shot. It also detects orientation during playback, so you can hold the camera in either orientation and it will automatically rotate images for correct viewing. This function may not operate correctly when the camera is pointed straight up or down.

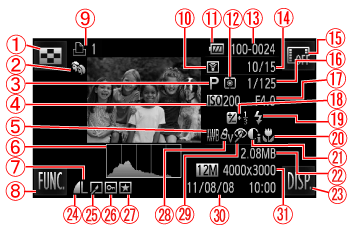

    Playback (Detailed Information Display)


    Index DisplayAperture Value
    My CategoryExposure Compensation Amount
    Movies, High-speed Burst, Shooting ModeFlash
    ISO Speed, Playback SpeedFocusing Range
    White Balancei-Contrast
    HistogramFile Size
    Recording Pixels, MOV (Movies)DISP. (Display)
    FUNC. (Function)Compression (Image Quality)
    Print ListGroup Playback, Image Editing
    Eye-Fi Transfer CompleteProtect
    Battery Charge IndicatorFavorites
    Metering MethodMy Colors
    Folder Number – File NumberRed-Eye Correction
    Displayed image number / Total number of imagesShooting Date and Time
    No Information DisplayStill Images: Recording Pixels
    Movies: Movie Length
    Shutter Speed (Still Images), Image Quality / Frame Rate (Movies)
