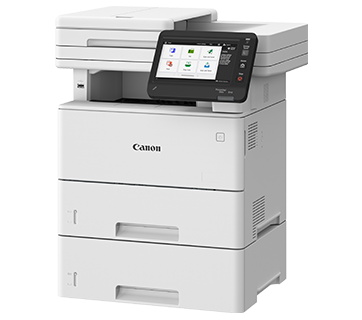

Meet the imageFORCE 1643 Series — designed to deliver effortless control at your fingertips. Combining high-speed performance with a responsive, intuitive interface, it simplifies even the most complex document tasks. From one-touch job execution to seamless workflow navigation, every interaction is built for ease and efficiency — helping you get more done with less effort, while ensuring secure and reliable operation.
Promotion
Key Features
Features
Secure & reliable
Work with confidence knowing your documents are protected. The imageFORCE 1643 Series is equipped with robust security features, including encrypted secure print, start-up verification, and user authentication — helping safeguard sensitive data and ensure only authorised access.

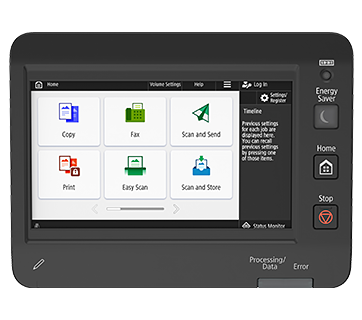

Smart, intuitive operation
Take control of your workflows with a responsive, customisable 7-inch colour touchscreen. Designed for ease of use, it offers smooth navigation, shortcut personalisation, and quick access to frequently used functions for a seamless user experience.
Effortless productivity
Simplify daily tasks with intelligent features like the Smart Timeline, which learns your usage patterns to surface frequently used settings. Combined with guided help and built-in QR code support, it ensures quick setup and minimal downtime so you can stay focused on what matters.
Specifications
imageFORCE 1643 Series
Download Brochure
Main unit
| Machine type | A4 monochrome laser multifunctional |
| Core functions |
imageFORCE 1643F: Print, copy, scan, send and fax
imageFORCE 1643: Print, copy, scan, send |
| Control panel | 7-inch TFT LCD WVGA colour touch panel |
| Memory
| 2.0 GB RAM
|
| Storage
| 30 GB eMMC
|
| Interface connection
| NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Host) ×2, USB 2.0 (Device) ×1 |
| Network security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception |
| Document security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) |
| Paper supply capacity (A4, 80 gsm) | Standard: Paper cassette: 550 sheets Multi-purpose tray: 100 sheets Maximum: 2300 sheets (with paper feeder PF-C1) |
| Paper output capacity (A4, 80 gsm) | 150 sheets |
| Toner yield (Estimated @ 5.0% coverage) | T06 Toner BK: 20,500 pages |
| Supported media sizes | Paper cassette: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL, 16K, F4A (CHN) Custom (Min. 105.0 × 148.0 mm to Max. 216.0 × 355.6 mm) Multi-purpose tray: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL, Index Card Envelope: COM10, Monarch, C5, DL (Overseas) Custom (Min. 76.2 × 127.0 mm to Max. 216.0 × 355.6 mm) |
| Supported media weights | Paper cassettes: 60 to 120 gsm
Multi-purpose tray: 60 to 199 gsm Duplex: 60 to 120 gsm |
| Warm-up time
| Quick startup mode: 4 Seconds or less*2 From sleep mode: 20 Seconds or less |
| Dimensions (W × D × H)
| 480 × 518 × 458 mm
|
| Installation space (W × D)
| 480 × 668 mm*3 |
| Weight*4 | Approx. 55.1 lb (25 kg)
|
| Print speed (BW) |
1-sided: Up to 43 ppm (A4), up to 45 ppm (A5, A6) 2-sided: Up to 36 ppm (A4) |
| Print resolution (dpi) | 600 dpi × 600 dpi |
| Page description languages | Standard: UFR II, PCL6/PCL5, Adobe® PostScript®3™ |
| Direct print | Supported file types: PDF, EPS, TIFF/JPEG, and XPS |
| Printing from mobile and cloud | AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online and Universal Print A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information |
| Operating system | UFRII: Windows®10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.15 or later) PCL: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 PS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.15 or later) PPD: Windows® 10/11, macOS (10.15 or later) Note: At the timing of Jul, 2025. |
Copy
| Copy speed (BW and CL) |
1-sided: Up to 43 ppm (A4), up to 45 ppm (A5, A6), up to 45 ppm (Letter) 2-sided: Up to 36 ppm (A4), up to 37 ppm (Letter) |
| First-copy-out time (A4, BW/CL) | A4: Approx. 6.3 sec |
| Copy resolution (dpi) |
600 × 600 dpi (Platen / default) 600 × 600 dpi (ADF) 300 × 600 dpi (ADF / default) |
| Multiple copies
| Up to 9,999 copies
|
| Copy density
| Automatic or manual (9 levels)
|
| Magnification
| Variable zoom: 25% to 400% (1% increments)
|
Scan
| Type | Standard: Single-pass Duplexing Automatic Document Feeder |
|
Document feeder paper capacity (80 gsm) |
Up to 50 sheets |
| Supported media sizes | Document feeder media size: A4, B5, A5, A6, LGL, LTR, STMT Custom size: 48.0 × 85.0 to 216.0 × 355.6 mm |
| Scan speed (ipm: A4) | 1-sided scanning: 50/50 (300 × 300 dpi, send), 50 (300 × 600 dpi, copy) 2-sided scanning: 100/100 (300 × 300 dpi, send), 100 (300 × 600 dpi, copy) |
| Scan resolution (dpi) | Scan for copy: up to 600 dpi × 600 dpi Scan for send: (Push, BW) up to 600 dpi × 600 dpi, (Pull, BW) up to 600 dpi × 600 dpi (Push, CL) up to 300 dpi × 300 dpi, (Pull, CL) up to 300 dpi × 300 dpi Scan for fax: up to 600 dpi × 600 dpi |
| Pull scan specifications | Color Network ScanGear2 for both TWAIN and WIA Supported OS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 As of Dec. 2024 |
Send
| Destination |
Standard: E-mail / Internet FAX (SMTP*5), SMB, FTP, WebDAV, Mail Box |
| Address book | LDAP (2,000) / Local (1,600) / Speed dial (200) |
| Communication protocol |
File: FTP (TCP/IP), SMB (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
| File format
| TIFF (MMR), JPEG, PDF (Compact, OCR (Text Searchable), Optimise for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, OCR (Text Searchable), Device Signature, User Signature), Office Open XML (PowerPoint, Word)
|
Fax (imageFORCE 1643F only)
| Maximum number of connection lines | 1 |
| Modem speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression method | MH, MR, MMR, JBIG |
| Resolution (dpi)
| 400 × 400 (Ultra fine), 200 × 400 (Super fine), 200 × 200 (Fine), 200 × 100 (Normal)
|
| FAX memory
| Up to 30,000 pages (2,000 jobs)
|
| Speed dials
| Max. 200
|
| Group dials/destinations
| Max. 199 dials
|
| Sequential broadcast
| Max. 256 addresses
|
Environmental
| Power source | 220-240 V, 50/60 Hz, 3.4 A |
| Power consumption | Maximum: Approx. 1,400 W Sleep mode: Approx. 1.0 W*6 |
Paper supply
| Paper feeder PF-C1 | Paper capacity: 550 sheets Paper type: Thin, Plain, Recycled, Colour, Heavy, Bond, Letterhead Paper size: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL Custom (Min. 105.0 × 148.0 mm to Max. 216.0 × 355.6 mm) |
- Optional.
- Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
- Cassette and back door opened.
- Including regular toner.
- Available OAuth 2.0 authentication method on Microsoft 365 and Google Workspace.
- 1.0 W is not available in all circumstances due to certain settings.
